Armstrong Foils Drive E-Foil Integrated Carbon Mast 795mm-650mm

Armstrong Foil Drive E-Foil Integrated Carbon Mast NZ

Seamless power assist meets signature Armstrong feel — fully integrated, freakishly smooth.

Meet the next evolution in powered foiling — the Armstrong Foil Drive E-Foil Integrated Carbon Mast. Designed for riders who want full-time power and total control, this setup drops the motor pod to 650 mm for consistent submersion, smooth acceleration, and unstoppable flow.

Engineered with a forward-set motor pod, the E-Foil mast delivers that signature Armstrong feel with cleaner lift, reduced drag, and electric acceleration through every carve. From learning your first flights to exploring harbours and coastlines around Aotearoa, it turns calm days into all-time sessions.



  • Foil Drive Motor and Battery sold separately. Complete your setup with the Armstrong × Foil Drive Assist MAX or Slim kits — available now at Underground Surf NZ.



Why You’ll Love It

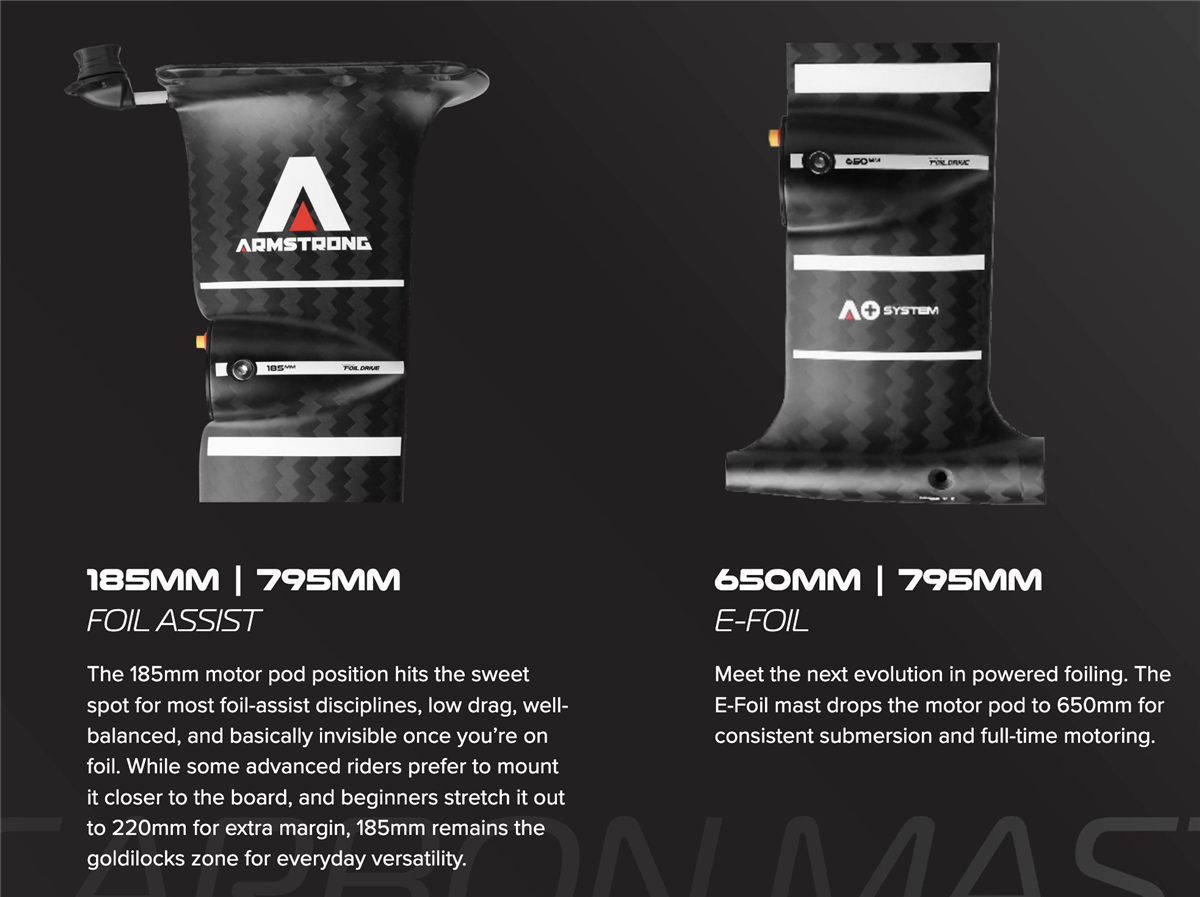

  • Pod Height – 650 mm: Perfectly positioned for consistent submersion and full-time power delivery.

  • Forward-set Design: Lowers drag, enhances lift, and makes acceleration smoother from take-off to touchdown.

  • Performance Carbon Build: Uses the same layup and design DNA as Armstrong’s industry-leading Performance Mast — ultra-stiff, low-flex, and insanely precise.

  • Built Armstrong-Strong: Crafted from Toray high-modulus carbon fibre, with premium titanium and 316L stainless hardware — built to handle real-world NZ conditions.

  • A+ System Compatible: Works with all Armstrong foils, old or new, using the hex-tapered fit for unmatched rigidity and durability.

  • Clean Integrated Cable Routing: A tidy, clutter-free setup that looks as smooth as it rides.



Specifications

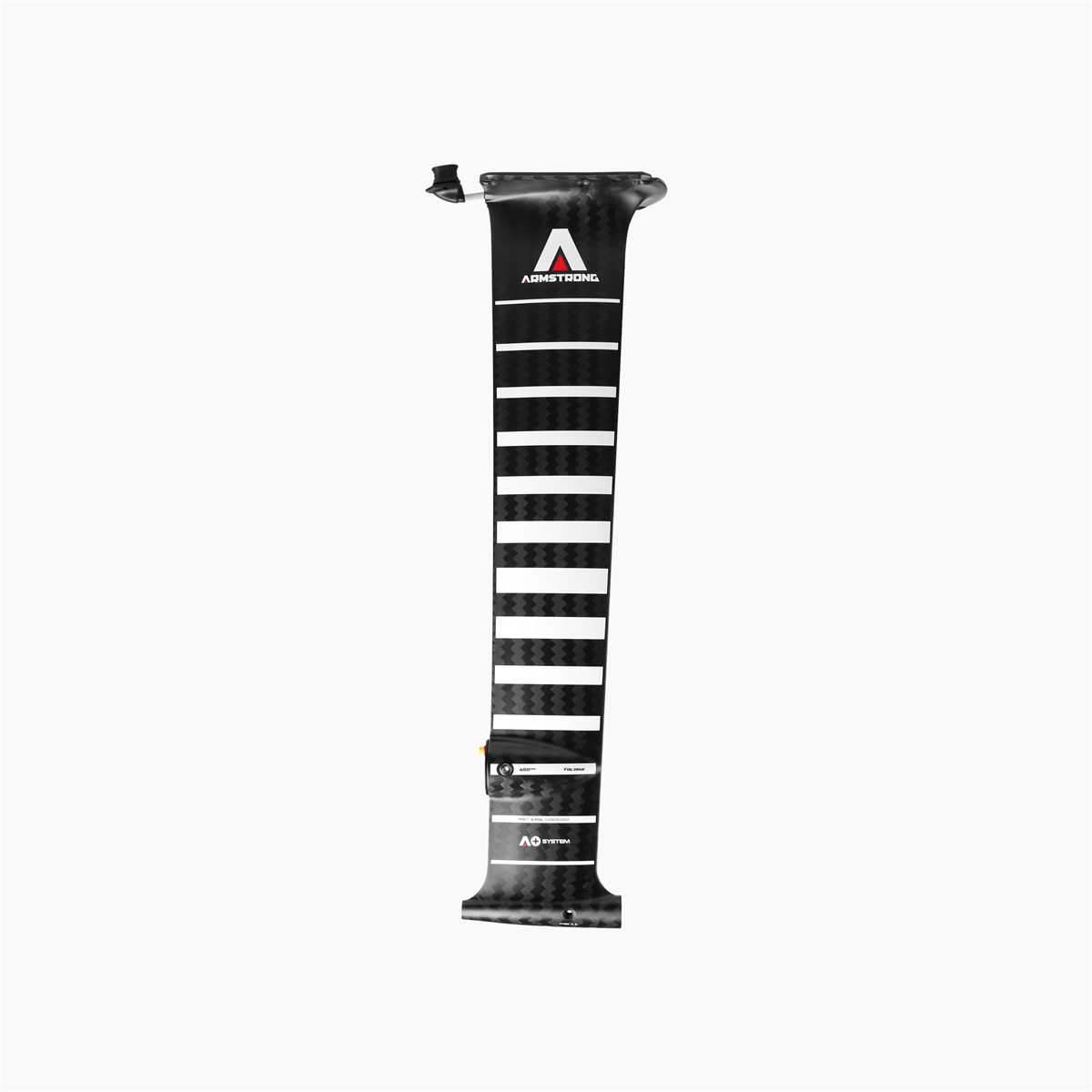

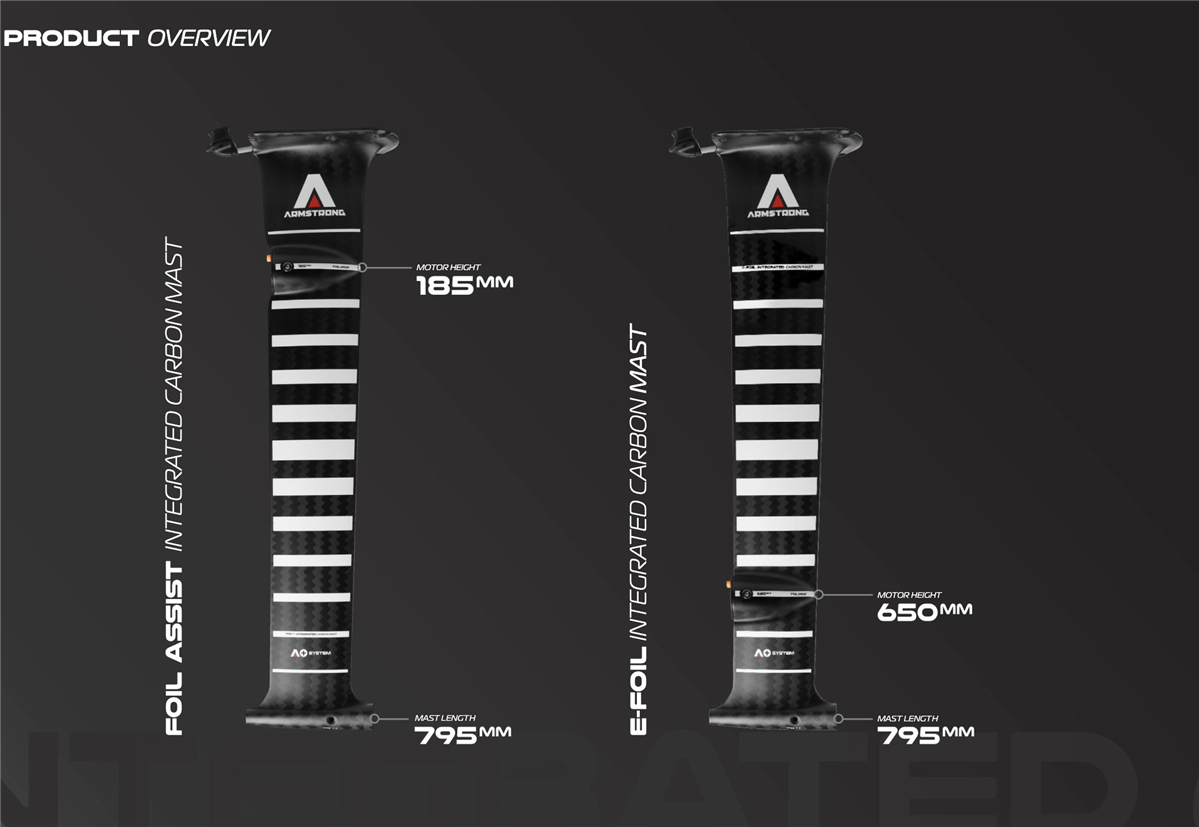

  • Mast Length: 795 mm

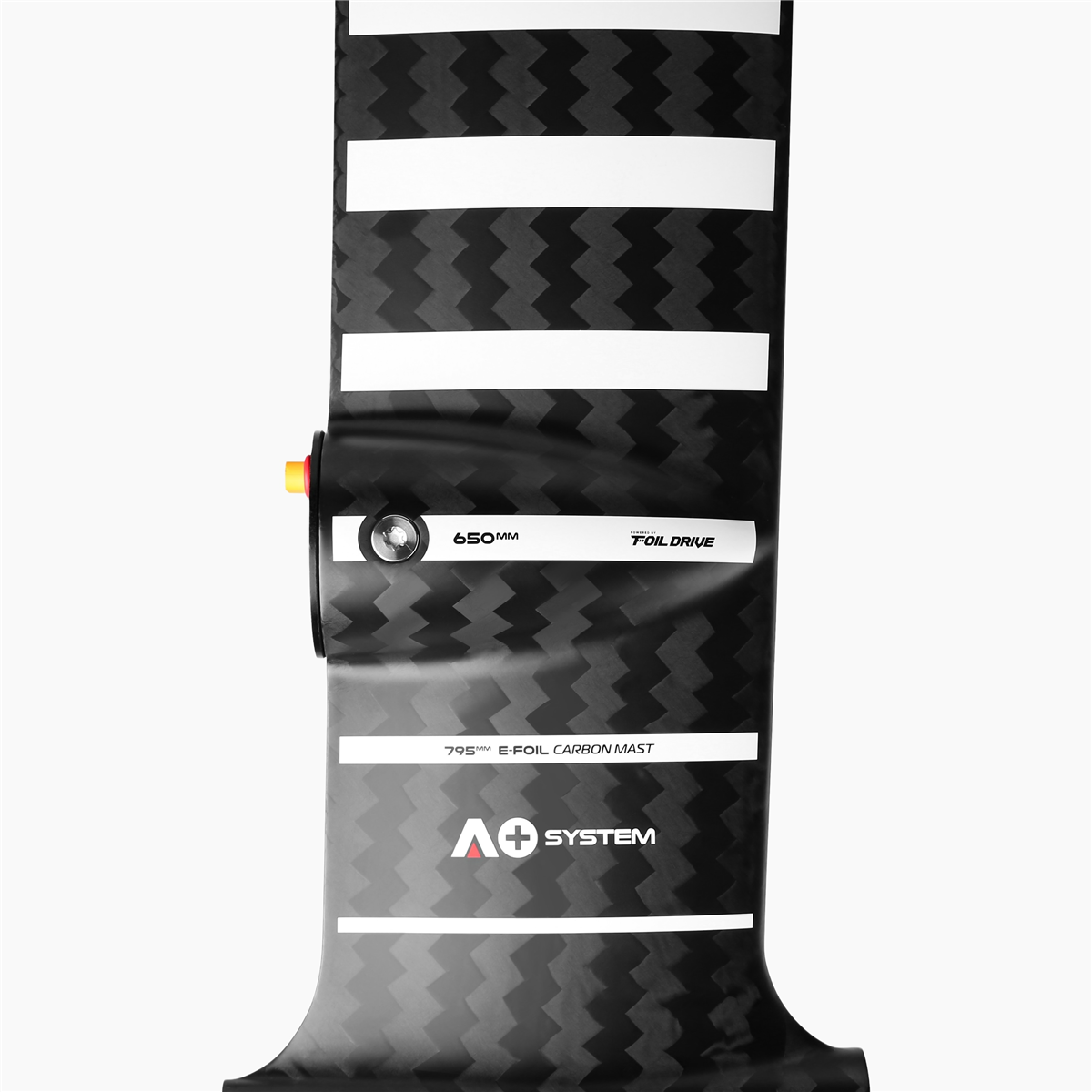

  • Pod Height: 650 mm

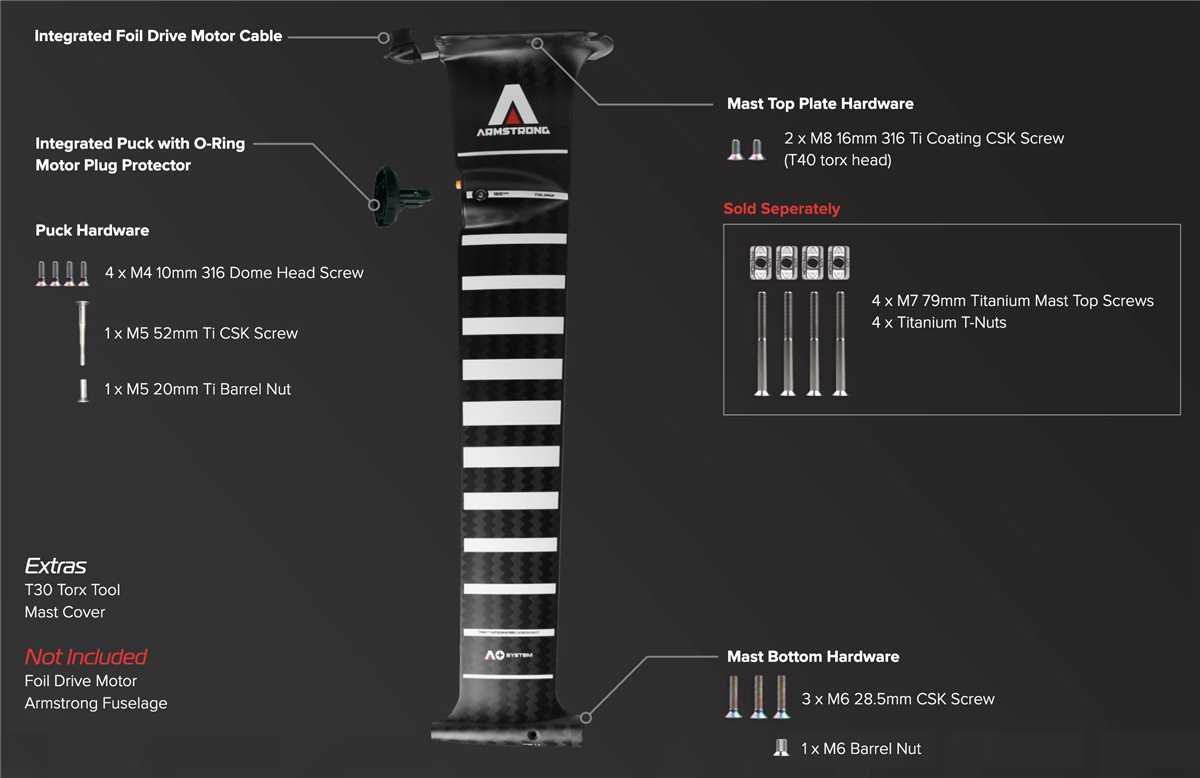

  • Included: Protective cover, hardware kit, T30 Torx tool

  • Construction: Toray carbon + Titanium/316 hardware

  • System: A+ Modular Assembly

  • Compatible With: Foil Drive Assist MAX & Slim (V2 motors only)

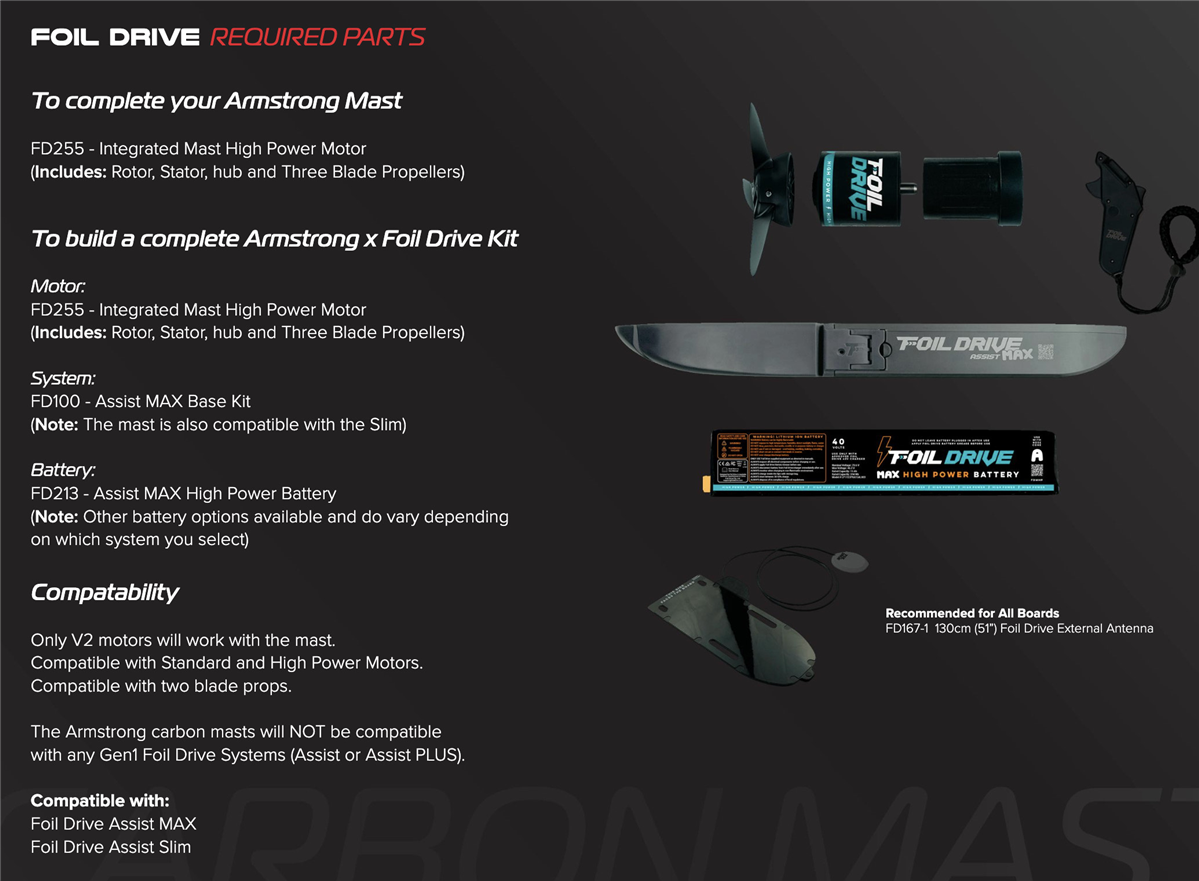

What You’ll Need (Sold Separately)

To build a full Armstrong x Foil Drive kit:

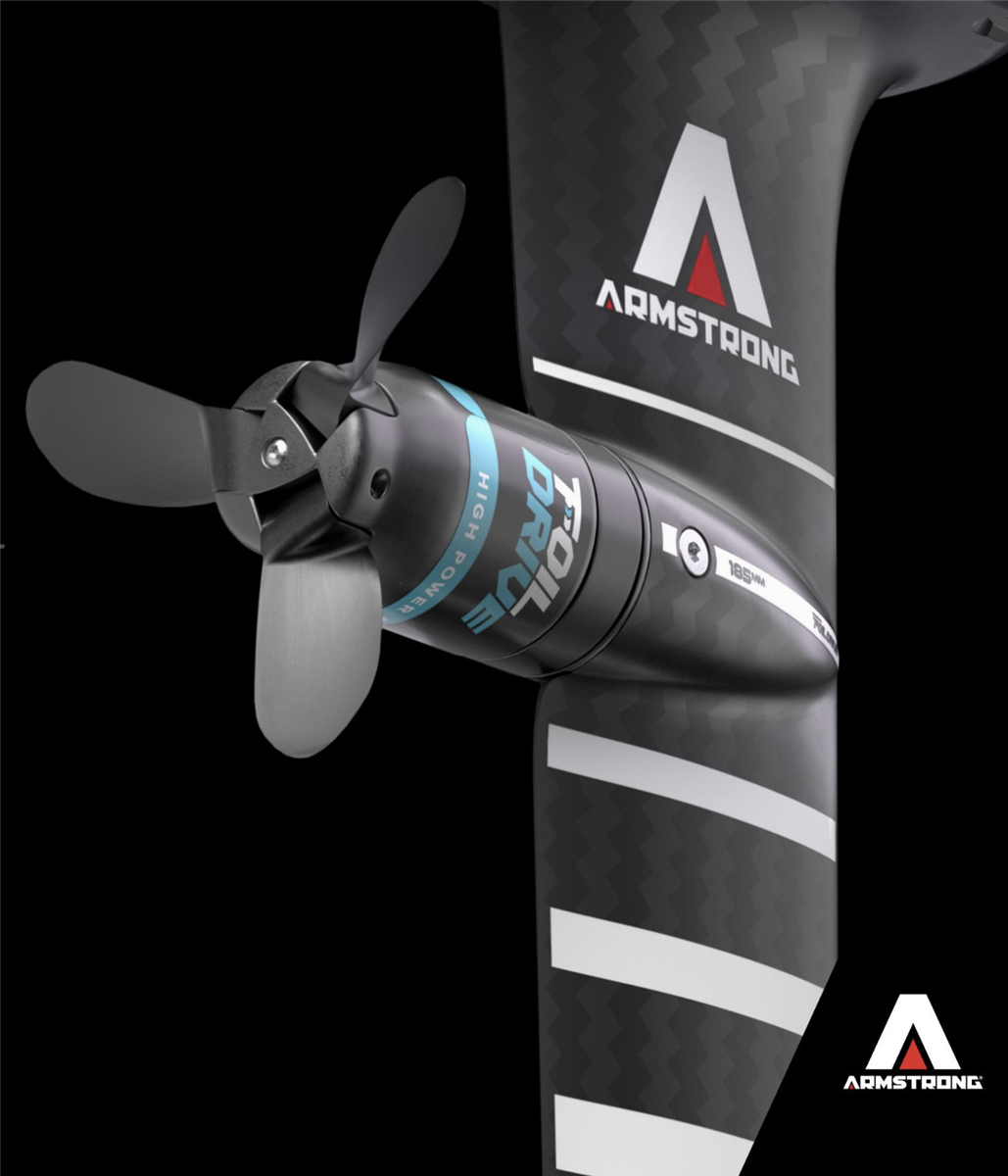

Motor: FD255 – Integrated Mast High Power Motor

Battery: FD213 – Assist MAX High Power Battery (other options available)

Base Unit FD100 - Foil Drive Assist MAX (Base Kit)

Fuse + Foil + Board.  Contact us re combo deals

  • Not compatible with Gen 1 Foil Drive systems (Assist or Assist PLUS).








Perfect For



  • Boats, lakes and those not chasing swells.

  • Beginners learning to fly — super stable, super smooth

  • Advanced riders wanting full-time thrust and unmatched range

  • Foil Drive users ready for a next-level integrated setup



Available now at Underground Surf – Orewa, Auckland.

We’re NZ’s Armstrong Foils flagship dealer, with demos, setup support, and fast NZ-wide shipping.



Armstrong Foil Drive E-Foil Mast NZ, Armstrong Foil Drive Integrated Mast, Foil Drive Assist MAX NZ, Armstrong Foils Orewa, Underground Surf Armstrong Foils NZ, E-Foil carbon mast, Foil Drive New Zealand, Armstrong Foil Drive setup.





MORE DETAILS AVAILABLE HERE:

https://issuu.com/armstrongfoilsinternational/docs/armstrong_foil_drive_integrated_carbon_masts
