Assist Slim Base Kit (No Motor) NZ | Underground Surf

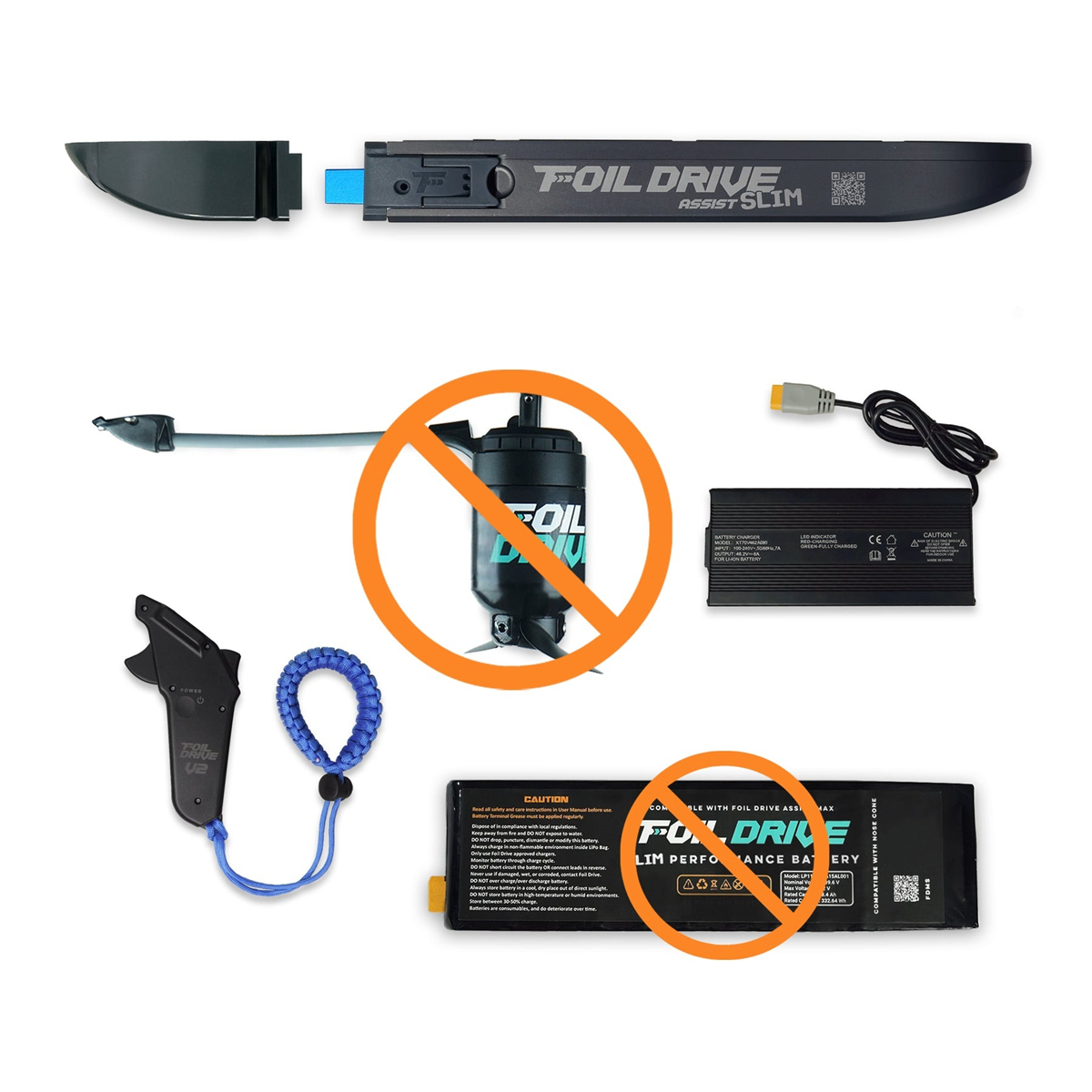

What's Included
BASE KIT LISTING DOES NOT COME WITH
*Choice of Battery with Lipo Bag*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!
Does include:

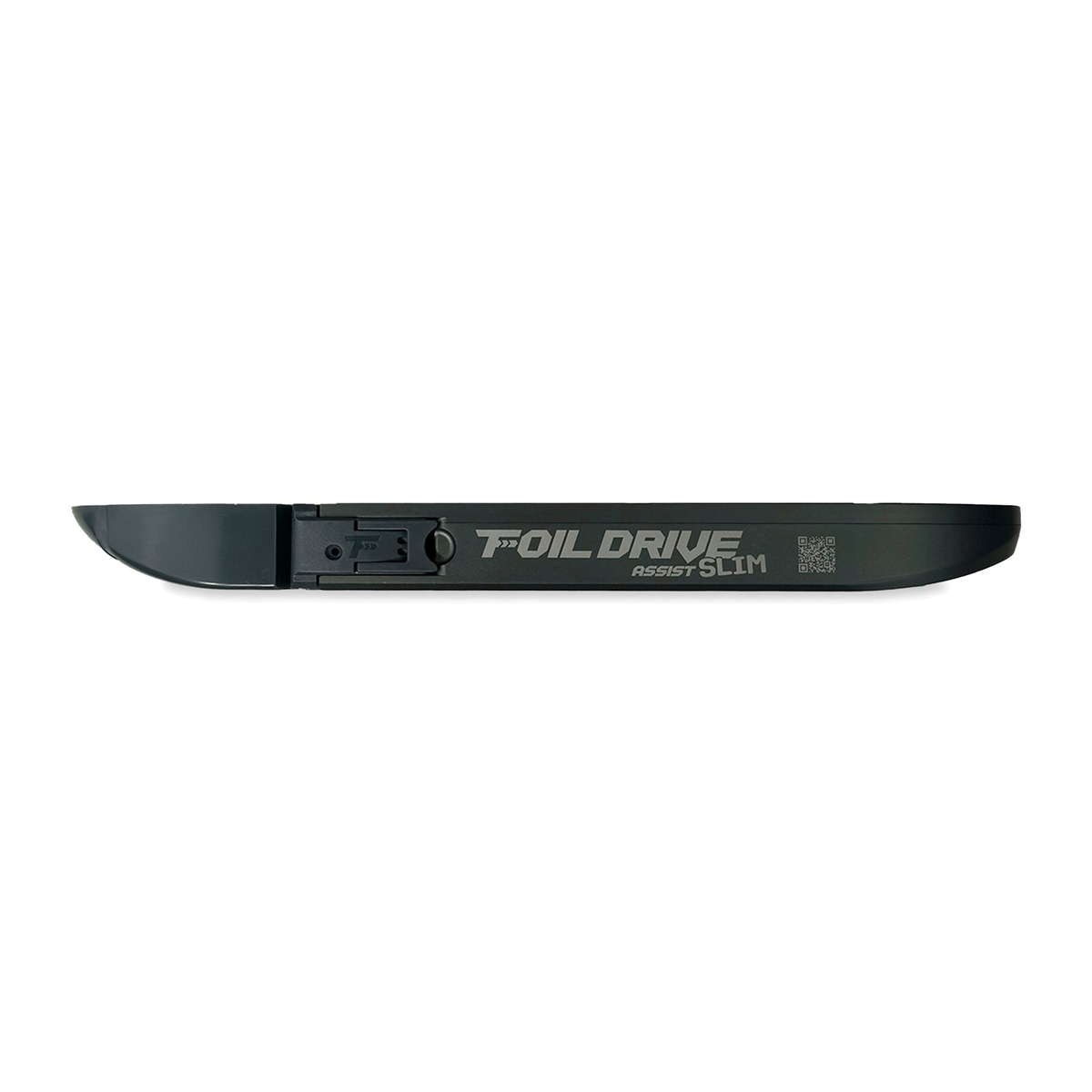

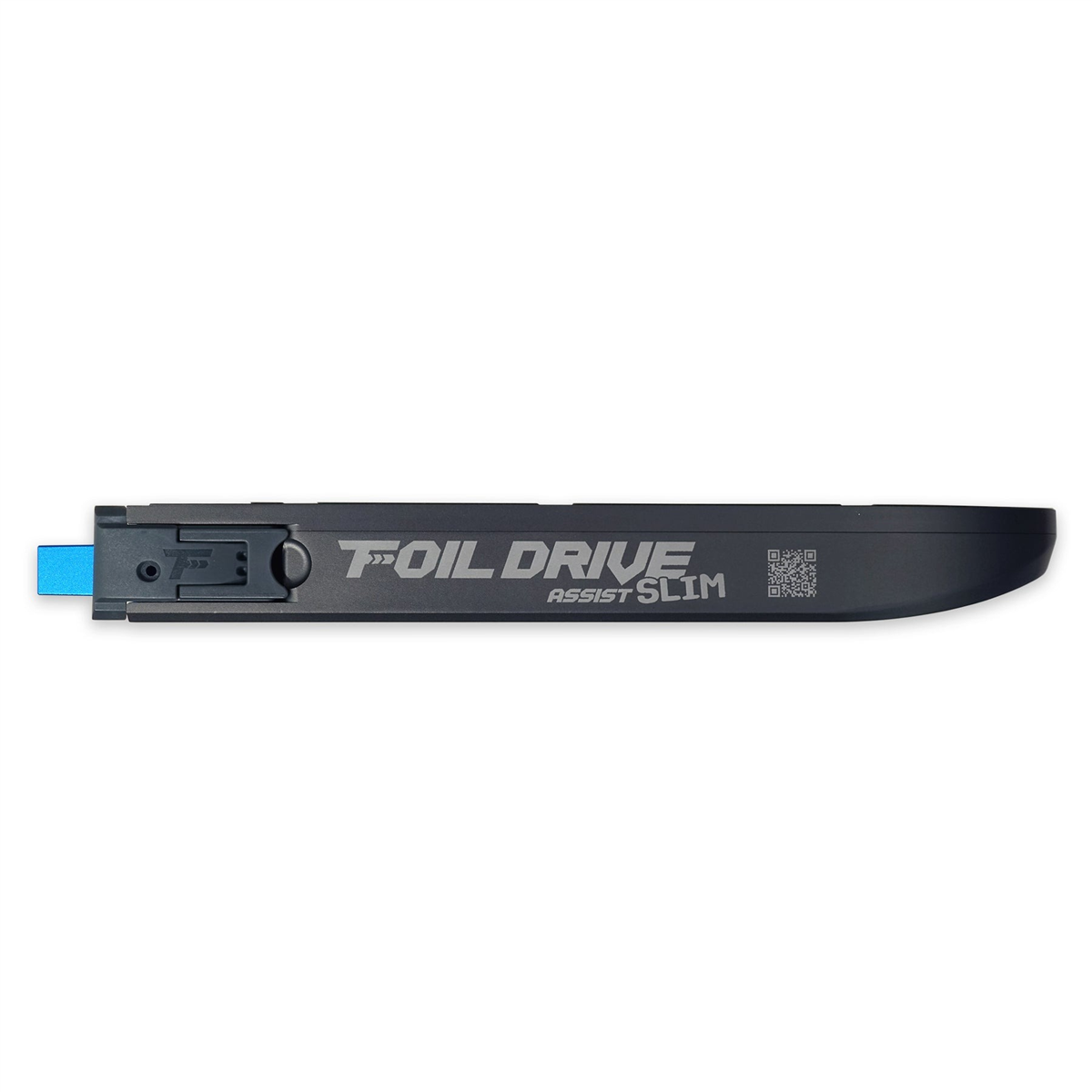

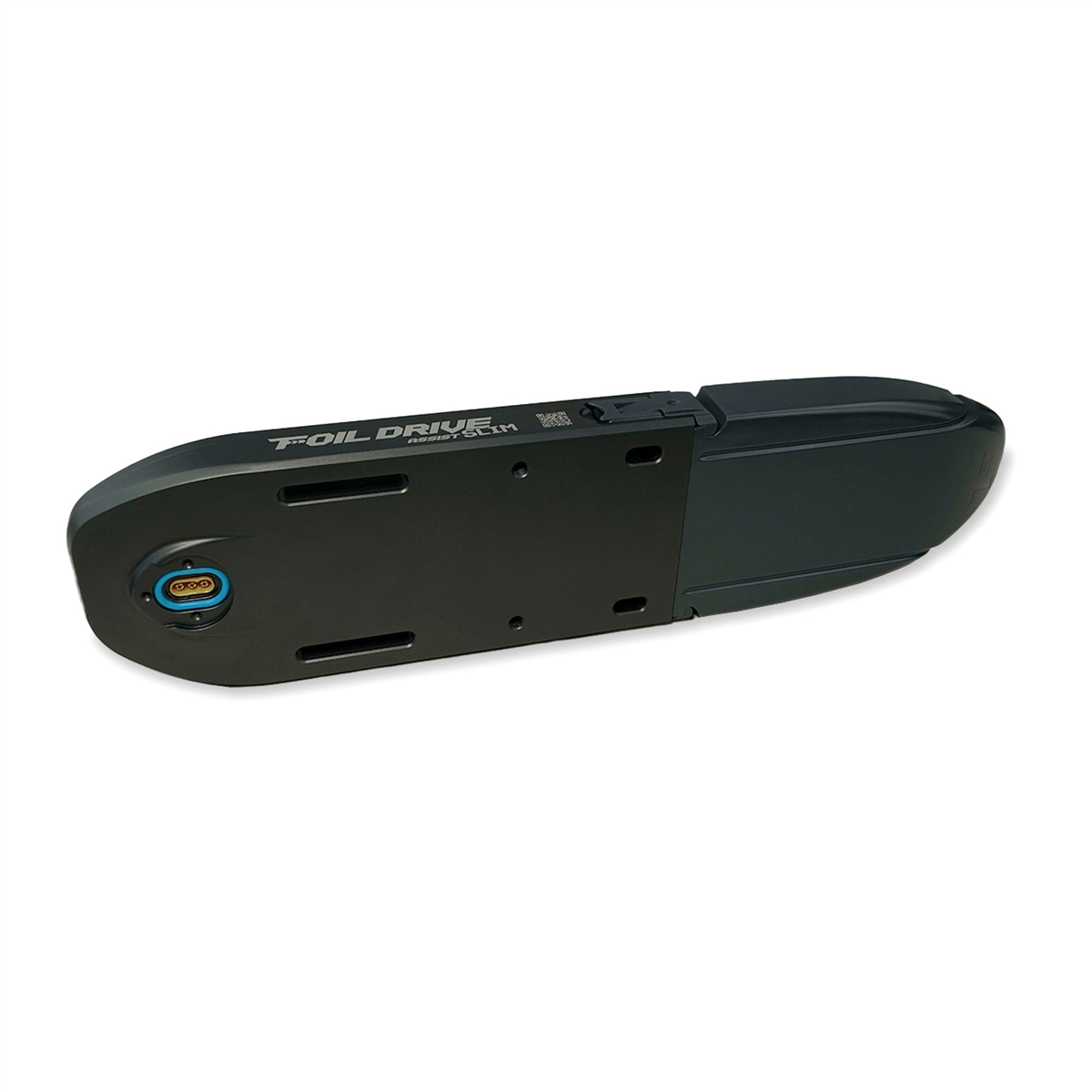

- Foil Drive Assist Slim Electronics Box
- Motor Plug Protector with Keychain
- Foil Drive Nose Cone C
- Foil Drive Nose Cone D
- Foil Drive Universal Motor Pod - Rear
- Foil Drive Universal Motor Pod - Short Nose
- Foil Drive Universal Motor Pod - Long Nose
- Foil Drive v2 Wireless Throttle Controller
- Foil Drive Controller Wrist Strap
- Foil Drive Mast Cable Guide 23cm
- Foil Drive Controller Wireless Charge Pad
- Micro USB Cable
- 40v Standard Foil Drive Charger 4amp
- Power Lead (AU, US or EU)
- 4x Mast Track Foam Inserts
- 2x Nose Cone Rocker Pad
- 2x Battery Grease
- 4x M8 Assist Slim Mast Plate Bolts 60mm
- 4x M6 Assist Slim Mast Plate Bolts 60mm
- Foil Drive 2.5mm Driver
- Torx T40 Tee Handle Driver
- Torx T30 Tee Handle Driver
- Foil Drive Cleaning Cloth

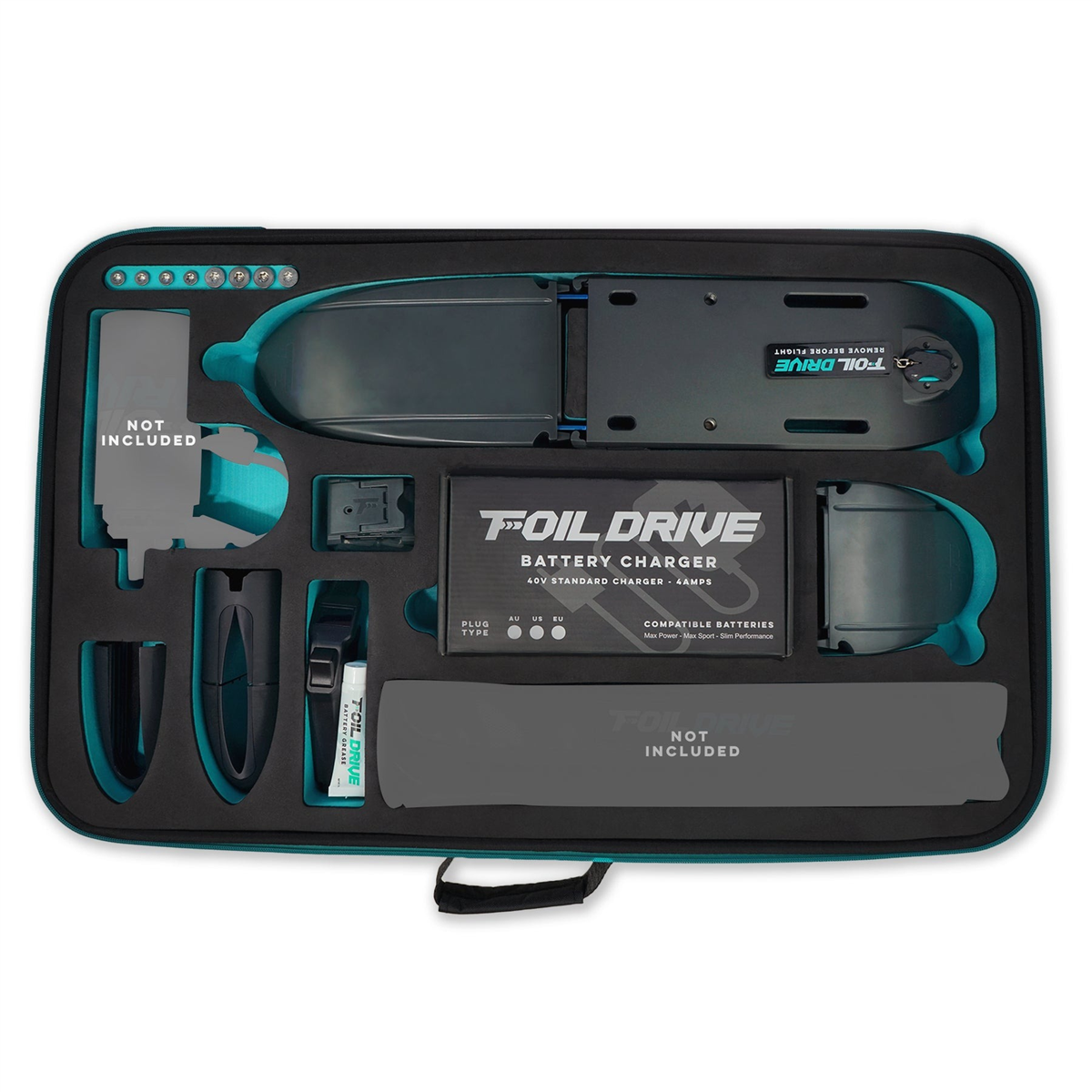

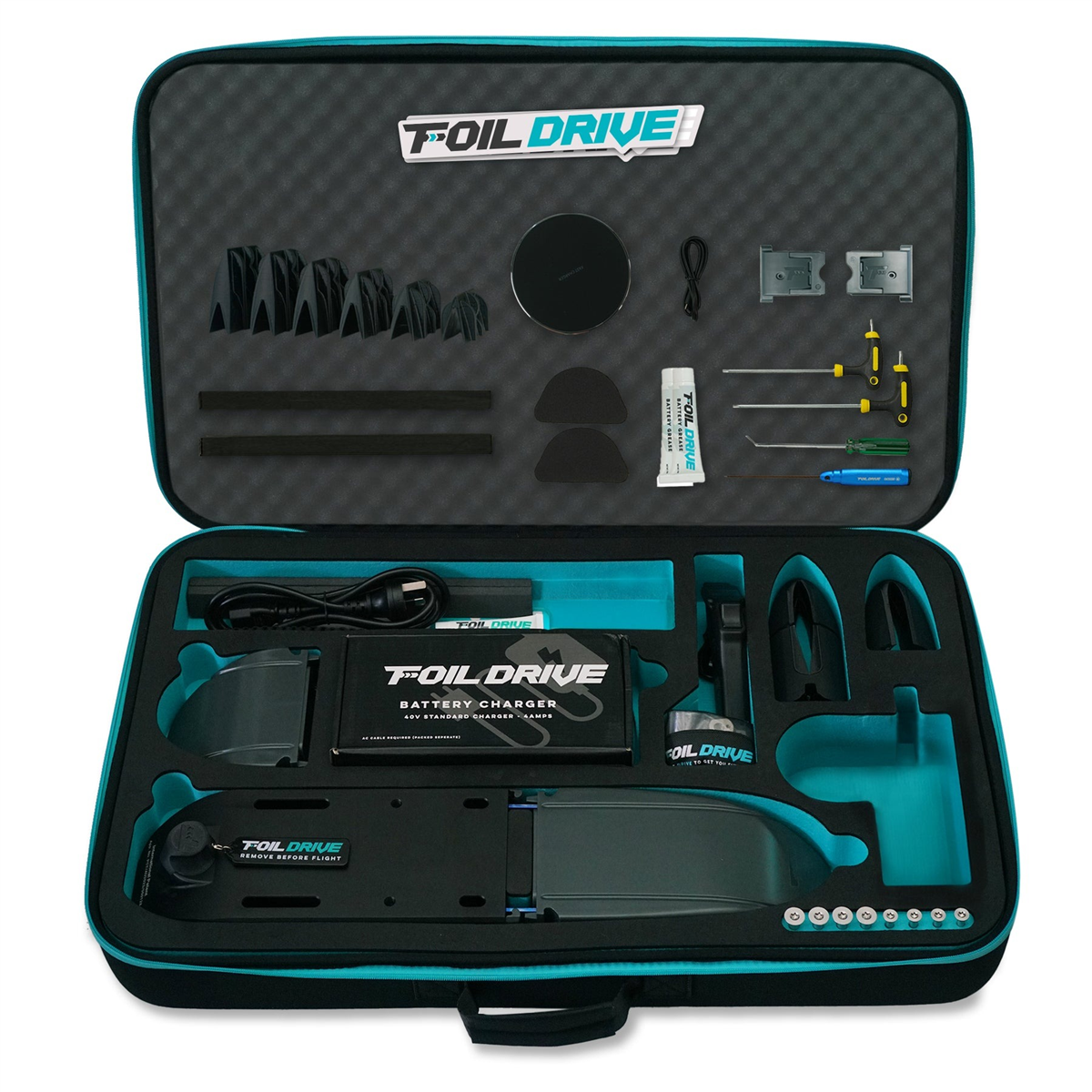

- Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag:
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M34 x 20m Bolts for Locking Tee Nuts 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag:
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag:
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
Compatible With
- Assist Slim
The Foil Drive Assist Slim is built for riders who want maximum performance in the smallest, lightest package. Designed for advanced surfers, downwinders, and wing foilers, this kit delivers just enough electric assist to get you on foil sooner, ride smaller boards, and push your progression further.
Foiling here is all about versatility - from Orewa’s clean lines to wild downwind runs along the coast. The Assist Slim makes it easier to catch waves, link bumps, and push progression without the bulk of larger systems. It’s a pure performance upgrade, not a crutch.
Why Choose the Assist Slim in NZ?
- Advanced riders chasing a low-profile, lightweight feel
- Downwinders & wingers who don’t need long run times but value efficiency and freedom
- Surfers looking for just enough boost to pop up on foil and enjoy smaller, more agile setups
At Underground Surf, we’ll help you choose the right setup for your riding style and conditions. That means you’ll get expert advice from real foilers, fast NZ-wide shipping, and the chance to demo and learn before you commit.
Key Warning/Notes
- Base Kit only – motor and battery sold separately
- Not suitable for prolonged motor-assisted riding – designed for short bursts of thrust to get you on foil
- Throttle discipline required – smaller batteries mean shorter run time
Tech Specs
- Max Thrust: 25.5kg (56.2lbs)
- Weight Range: 2.3-2.8 (5.0-6.1lbs)
- Dimensions with Longer C Battery: L510 x W250 x H35mm
- Dimensions with Short D Battery: L415 x W250 x H50mm
- App compatibility: Foil Drive app, Android and IOS
Foil Drive NZ – Hybrid Electric Foil Assist Systems
Ride Any Board, Any Foil, Any Way
Foil Drive is the world’s leading hybrid electric foil assist system, designed to make foiling more accessible, enjoyable, and fun. Whether you’re into surf foiling, wing foiling, pump foiling, wake, or downwind, Foil Drive adds just the right boost to get you flying faster and riding longer.
Gen2 MAX & Slim Kits Available in New Zealand
At Underground Surf, we stock the latest Foil Drive Gen2 Assist MAX and Assist Slim kits, plus all compatible batteries, chargers, motors, mini mods and accessories. These lightweight, powerful systems are engineered by foilers, for foilers, with unmatched performance and reliability.
Stocking the Armstrong Foils Mini Pod Intergrated mast.
Official Foil Drive Dealer & School
As New Zealand’s official Foil Drive dealer and Foil Drive School, we offer not only retail sales but also demos, rentals, and lessons. Try before you buy, get expert setup advice, and join the growing Foil Drive community in NZ.
Shop Online or In-Store
Order your Foil Drive kits, batteries, and accessories online, or visit us at Underground Surf in Orewa, Auckland. With local stock, support, and service, we’re here to help you take your foiling to the next level. Fast shipping and after sales service New Zealand wide.
