Foil Drive Assist MAX+ NZ | 43V Gen2.5 Electric Foil Assist System – Underground Surf

Foil Drive
  • $6,459.00 NZD
  • SAVE 0% ($0.00)
In stock - ships today
In stock email will be sent.
Instock notification already exists.
Need Our Help?
Call the friendly experts 09 427 9552

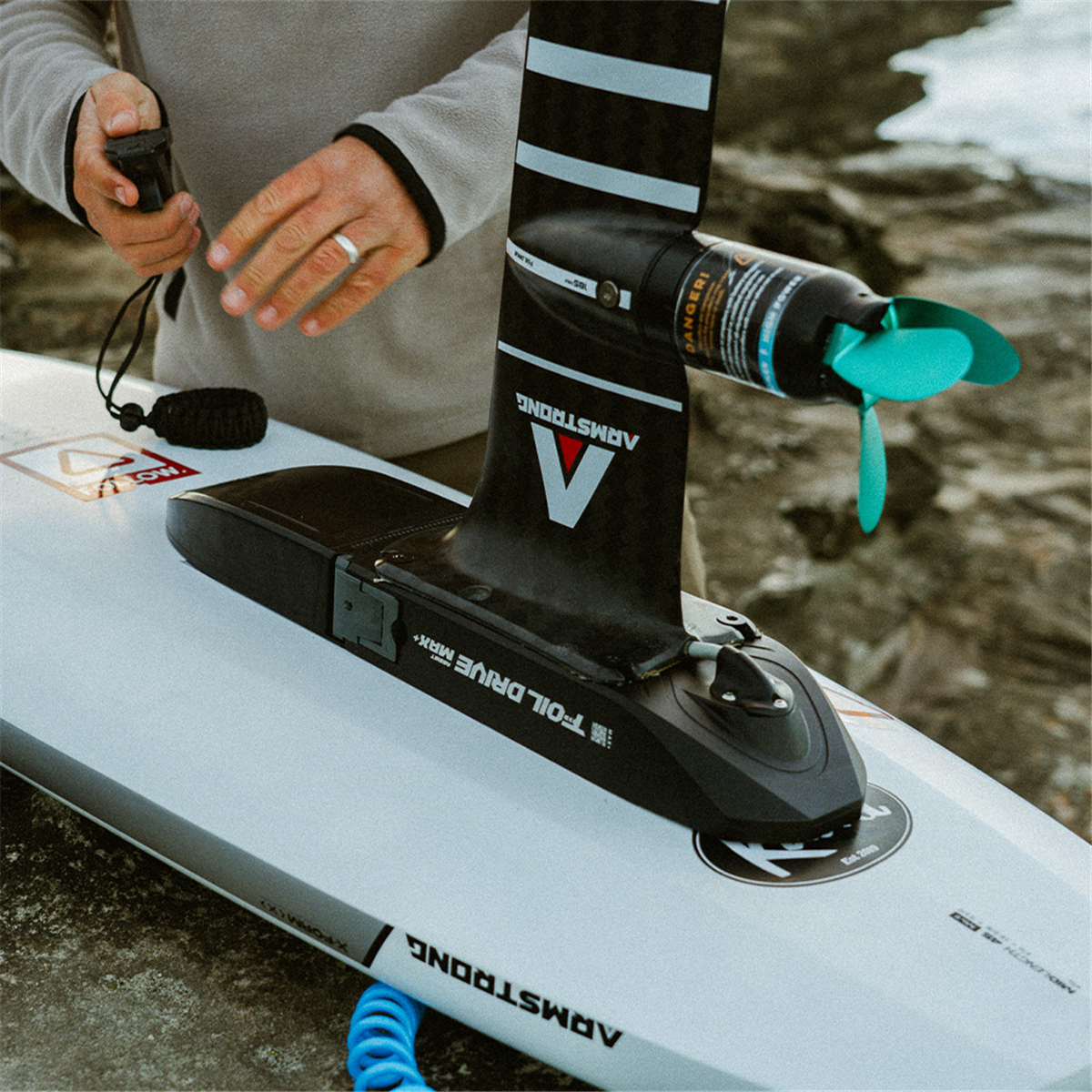

Foil Drive Assist MAX+ – 43V High-Power Foil Assist System

More Power. More Runtime. Still Feels Like a Foil.

The new Foil Drive Assist MAX+ is the all-rounder of the Gen2.5 range, built for riders who want serious power and runtime without giving away the light, responsive feel that made the original MAX so popular.

Running on Foil Drive’s new 43.2V architecture and paired with the FM+ 650 Battery, the MAX+ delivers up to 35.5kg of thrust, 2150W peak power and plenty of range for long surf sessions, downwind runs, wake chasing, flatwater starts and light eFoiling.

For NZ riders wanting one Foil Drive system that can cover almost everything, the MAX+ sits right in the sweet spot.

Why Choose the Assist MAX+?

The MAX+ is designed to give you more time on foil, more confidence getting started and more power when conditions are marginal.

It is especially suited to:

  • Longer surf sessions with higher wave counts

  • Motoring upwind before a downwind run

  • Faster and easier flatwater take-offs

  • Pumping practice without repeated tow or surf starts

  • Chasing boat wake

  • Faster recovery after falls

  • Smaller boards and foils where extra thrust helps

  • Riders wanting more progression across a wider range of conditions

Foil Drive recommends the MAX+ for all rider types and abilities under 100kg using small to mid-length boards, as well as advanced riders wanting to save weight without compromising heavily on power.

New 43V Architecture

The MAX+ moves onto Foil Drive’s 43V Gen2.5 platform, delivering more power and runtime while retaining a compact, balanced package.

Paired with the FM+ 650 Battery, you get:

  • 648Wh battery capacity

  • 35.5kg maximum thrust

  • 2150W peak power

  • 1750W sustained power

  • 2.88hp peak output

  • 2.35hp sustained output

The complete integrated setup starts from 6.71kg, including the battery, integrated HP motor and three-blade prop setup.

V3 Controller Included

The MAX+ comes standard with the latest Foil Drive V3 Controller, giving you a brighter display and the latest Foil Drive control platform.

The system also connects to the Foil Drive App on both iOS and Android.

Designed for Real Foiling

From tiny bumps through to proper surf, the MAX+ is built to make more sessions possible.

Surf, light-wind winging, downwind, wake, flatwater or light eFoiling — the MAX+ gives you the freedom to add electric assist to the foil gear you actually want to ride rather than locking you into a traditional efoil setup.

That is why we see this as a particularly strong option for NZ riders wanting one highly adaptable system.

Tech Specs

  • System Voltage: 43.2V

  • Battery Capacity: 648Wh

  • Maximum Thrust: 35.5kg

  • Minimum Installed Weight: 6.71kg

  • Dimensions with Battery: 540 × 125 × 55mm

  • Peak Power / Boost: 2150W

  • Sustained Power: 1750W

  • Peak Horsepower: 2.88hp

  • Sustained Horsepower: 2.35hp

  • App: Foil Drive App – Android & iOS

  • Water Rating: IP68 water and dust resistance

Installed weight is based on the unit, FM+ battery, Integrated HP Motor, Three-Blade Hub and props. A retrofit installation using the Mini Pod at 20cm adds approximately 360g.

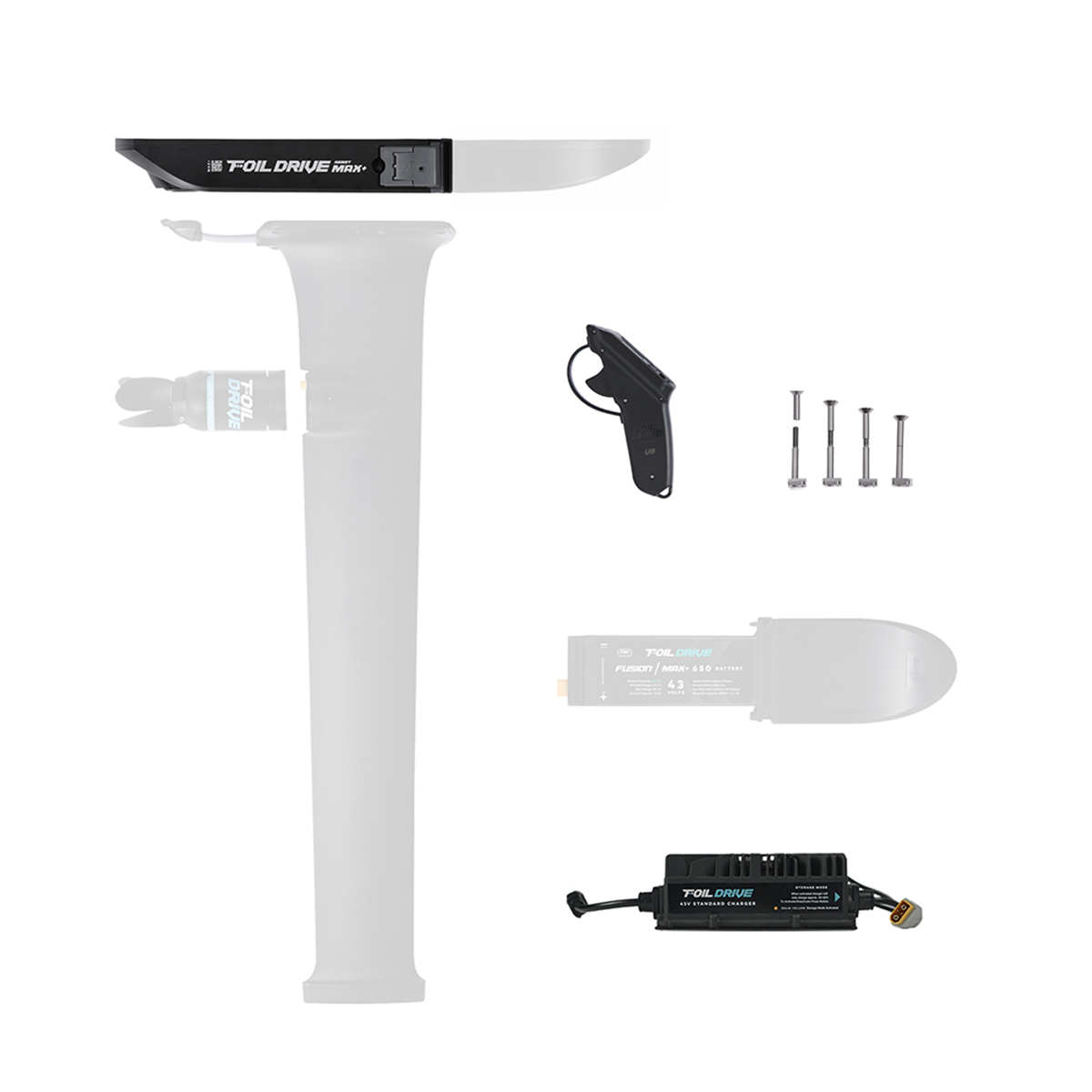

What's Included

  • Foil Drive Assist MAX+

  • FM+ 650 Battery

  • Your chosen motor option

  • Your chosen AC lead

  • V3 Controller with Bump Guard installed

  • 43V Standard Charger – 12A

  • 4 × Titanium T40 M7 Split Bolts

Controller Accessories

  • USB-C Charge Pad and Cable

  • Alternative Bump Guard

  • Wrist Leash

  • 1.5mm Allen Key

Tools & Hardware

  • T40 Driver

  • T30 Driver

  • 2.5mm Black Titanium Driver

  • Pick Tool

  • 2 × 15g Battery Grease

  • 2 × Nose Cone Rocker Pads

  • 3 × M4 10mm Titanium Motor Plug Bolts

  • Anode Replacement Kit

  • Replacement Electronics Box O-Ring

  • Replacement Motor Cable O-Rings

  • Microfibre Towel

Also Included

  • 2 × Mast Foam Track Guides

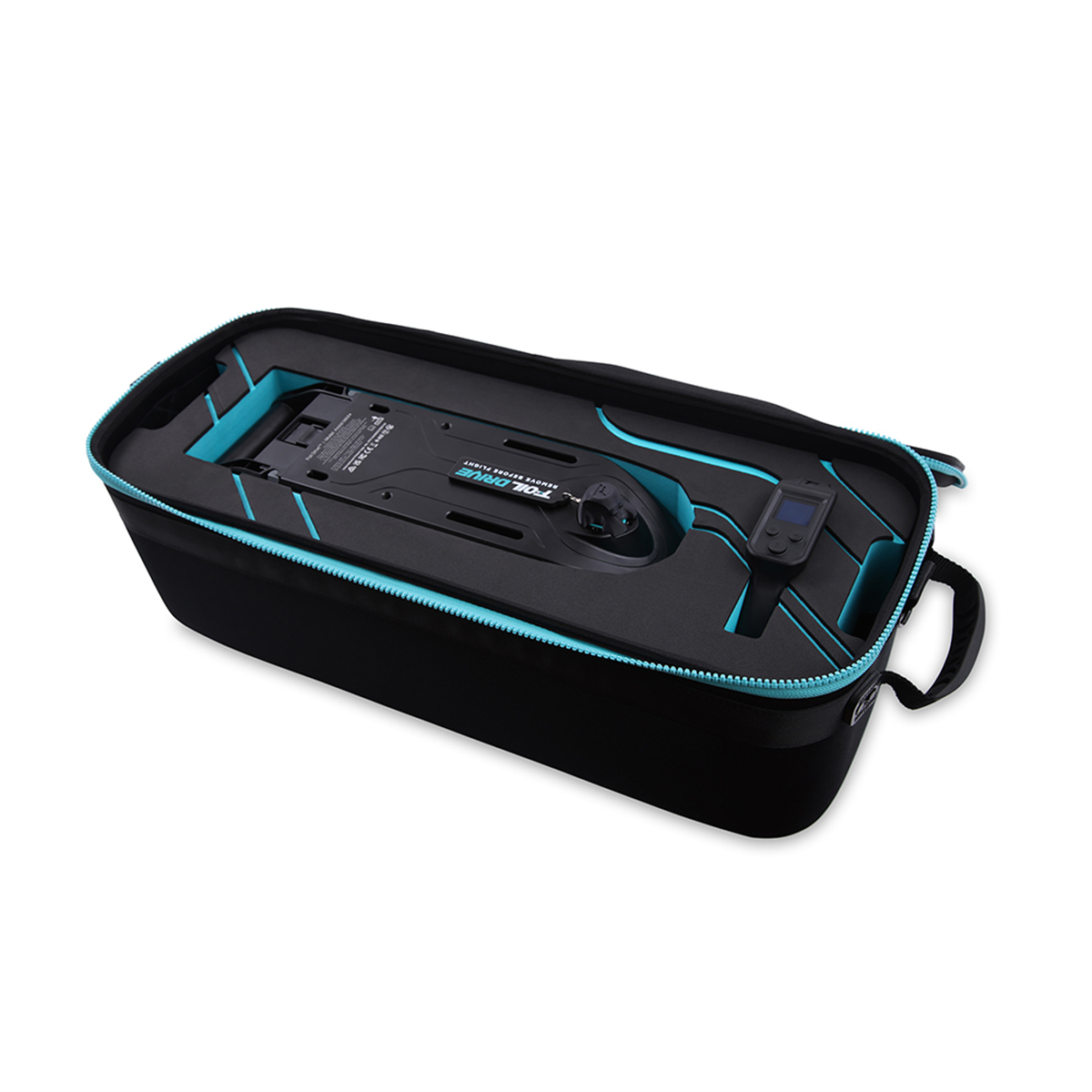

  • Tool Caddy inside the MAX+

  • Sticker Pack

  • User Manuals

Compatibility

Compatible With

  • FM+ 650 Battery

  • 43V Foil Drive Chargers

?? Important: Existing Gen2 batteries are NOT compatible with the Assist MAX+.

Need Help Choosing?

Not sure whether the MAX+, Fusion or another Foil Drive system is right for you?

Talk to Underground Surf and we can help match the system, battery, motor position, board and foil to your weight and riding style.

Available from Underground Surf NZ with demos, setup advice, after-sales support and NZ-wide shipping.


Foil Drive NZ – Hybrid Electric Foil Assist & Fusion Systems

Ride Any Board, Any Foil, Any Way

Foil Drive is the world’s leading hybrid electric foil system, making foiling easier, more accessible, and way more fun. Whether you’re into surf foiling, winging, bumps, downwinders, wake or flatwater cruising, Foil Drive gives you the boost you need to get flying faster, stay up longer, and ride in more conditions across Aotearoa.

Book in a FREE Expert Consultaion to help you get the right gear.

Please not packages are a guide.  We will always call and confirm you have the right items for any package purchased from us for Foil Drive.

Shop Packages

Now Stocking the New Foil Drive Fusion (Gen 2.5)

The brand-new Foil Drive Fusion has landed — a true hybrid system combining efoil power + Assist lightness in one sleek package.

Fusion delivers:

  • More power (43V architecture)

  • More runtime (864Wh Fusion 860 Battery)

  • Smarter tech (V3 Controller with GPS + Tilt Sensor)

  • Better cooling & durability

  • Full Gen2 compatibility

It’s the perfect all-round system for riders who want an adaptable efoil alternative and a powerful Foil Assist for surf, wing, bumps and downwind.

Gen2 Assist MAX & Slim Kits Also Available

We also stock the full Gen2 Assist MAX and Assist Slim range — lightweight, powerful, modular systems designed by foilers, for foilers. Browse batteries, chargers, motors, upgrades, pods, accessories and all replacement parts.

Plus, we carry the Armstrong Foils Mini Pod Integrated Mast and full mounting options for every major foil brand.
